Fire Sprinkler Systems Explained: Types, Operation, and Why They Matter to Firefighters

Fire sprinkler systems are the most effective fire suppression technology ever developed. That is not an opinion. The data backs it up across decades of fire loss statistics. When a building has a properly designed, installed, and maintained sprinkler system, the chances of dying in a fire drop by roughly 80 percent, and property loss is cut by about 70 percent compared to fires in non-sprinklered buildings. As firefighters, we need to understand these systems inside and out because they directly affect how we fight fire in protected buildings.

I have been on plenty of fires where the sprinkler system held the fire in check until we arrived. I have also been on fires where the system malfunctioned or had been shut off, and we were dealing with a completely different animal. Knowing how sprinklers work, what type you are dealing with, and how to support the system on scene can make the difference between a routine operation and a catastrophe.

How Sprinkler Systems Work: The Basics

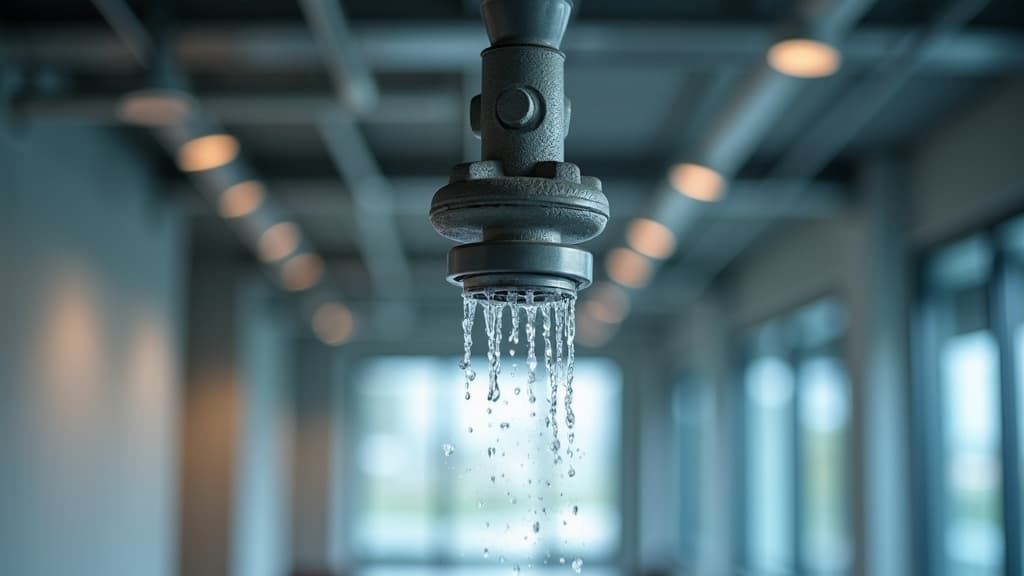

A fire sprinkler system is a network of piping installed throughout a building, connected to a water supply, with individual sprinkler heads positioned at regular intervals along the piping. Each sprinkler head contains a heat-sensitive element, either a glass bulb filled with liquid or a fusible metal link, that holds the head in the closed position. When the ambient temperature around that specific head reaches its activation temperature, the element fails, the head opens, and water flows onto the fire below.

Here is the critical point that most people get wrong, including many firefighters early in their career. Sprinkler heads activate individually based on the heat reaching that specific head. They do not all go off at once like in the movies. In the vast majority of fires controlled by sprinklers, only one or two heads activate. The system is designed to control or suppress the fire at its point of origin before it can spread.

Each sprinkler head is rated for a specific activation temperature. The most common ratings are 135 degrees Fahrenheit for ordinary hazard (usually identified by a glass bulb that is orange or red) and 155 degrees for standard commercial applications. Higher temperature ratings exist for areas near heat sources like kitchens and boiler rooms. The color coding of the glass bulb or the frame of the head tells you the temperature rating.

Wet Pipe Systems

Wet pipe systems are the most common type you will encounter, making up approximately 70 percent of all installed sprinkler systems. In a wet pipe system, the piping is filled with pressurized water at all times. When a head activates, water flows immediately. There is no delay.

The simplicity of wet pipe systems is their greatest strength. There are fewer components to fail, and the water delivery is instantaneous. The downside is that wet pipe systems cannot be installed in spaces where the piping would be exposed to freezing temperatures, because frozen pipes cannot deliver water, and ice expansion can crack the piping. This means unheated warehouses, parking garages, loading docks, and attics in cold climates typically cannot use wet pipe systems unless the space is heated.

When you arrive on scene and the sprinkler system is operating, your first priority is to support the system by establishing a water supply to the fire department connection, which is typically called the FDC or the siamese connection. Pumping into the FDC supplements the building's domestic water supply and ensures the sprinkler system does not run out of pressure or volume. Most departments establish a standard FDC pump pressure, commonly 150 psi, but check your SOGs for the specific number your department uses.

Dry Pipe Systems

Dry pipe systems solve the freezing problem by keeping the piping filled with pressurized air or nitrogen instead of water. The air pressure holds a dry pipe valve in the closed position. When a sprinkler head activates, the air escapes, the pressure drops, the dry pipe valve trips open, and water enters the system and flows from the open head.

The key operational difference for firefighters is the delay. In a dry pipe system, there is a lag time between when the head activates and when water actually reaches the fire. Depending on the size of the system and the length of the piping, this delay can be 60 seconds or more. That means the fire has more time to grow before water is applied. This is a significant tactical consideration when you arrive on scene at a building with a dry pipe system and multiple heads have activated but the system has not yet fully charged.

Dry pipe systems also require more maintenance than wet systems. The air compressor, the dry pipe valve, and the accelerator or exhaust valve all need regular testing and service. When these components fail, the system may not operate correctly when it is needed.

Pre-Action Systems

Pre-action systems are essentially dry pipe systems with an additional layer of protection. They require two events to occur before water flows: a detection device (usually a smoke detector or heat detector separate from the sprinkler heads) must activate to open a pre-action valve, and then a sprinkler head must activate to release water. This two-step process is designed for environments where an accidental discharge of water would cause significant damage, such as data centers, museums, archive storage facilities, and telecommunications rooms.

There are different configurations of pre-action systems, including single interlock (only the detection system needs to activate to fill the pipes), double interlock (both detection and a sprinkler head must activate), and non-interlock variations. For fireground operations, the important thing to know is that pre-action systems may not flow water even if you see activated sprinkler heads. The detection system must have also triggered. If it has not, the system is essentially just open pipes with no water.

Deluge Systems

Deluge systems are used in high-hazard environments where a rapidly spreading fire could overwhelm individual sprinkler heads. In a deluge system, all of the sprinkler heads are open at all times. There are no heat-sensitive elements. The system is held in the dry condition by a deluge valve, which is controlled by a separate detection system. When the detection system activates, the deluge valve opens, and water flows from every head in the system simultaneously.

You will find deluge systems in aircraft hangars, chemical storage facilities, power generation plants, and other high-hazard occupancies. When a deluge system operates, the water flow is massive. Make sure your water supply can keep up.

The National Fire Protection Association at nfpa.org maintains extensive resources on sprinkler system standards, performance data, and fire protection research. NFPA 13 covers the installation requirements, NFPA 25 covers inspection, testing, and maintenance, and NFPA publishes regular statistical reports on sprinkler performance in actual fires. These resources are essential reading for any company officer operating in sprinklered buildings.

Fireground Operations in Sprinklered Buildings

When you arrive at a fire in a sprinklered building and the system is operating, resist the urge to shut it down. The sprinkler system is already doing its job. Shutting down the system before you have a charged hoseline in place and are ready to make entry is one of the worst tactical decisions you can make. I have seen crews shut down sprinklers because the water was making a mess, and then watched a controlled fire roar back to life.

Here is the standard approach. Establish a water supply to the FDC immediately. Have your driver operator pump into the FDC at the department's standard pressure. Get your attack lines in place. Make entry and locate the fire. Confirm the fire is controlled or extinguished. Only then should you discuss shutting down the system, and only in coordination with the incident commander.

When you do shut down the system, close the main control valve slowly. Post a fire watch at the valve with a portable radio. If the fire rekindles, that valve needs to be reopened immediately.

Know where the main control valves and FDC connections are located in your first-due area. Pre-plan these locations during building inspections. Nothing slows down a fire operation like searching for the FDC connection while the building is filling with smoke.

Sprinkler systems are your best ally on the fireground. They control fire growth, reduce temperatures, and buy your crew time to make a safe and effective interior attack. Understand them, support them, and never take them for granted.
